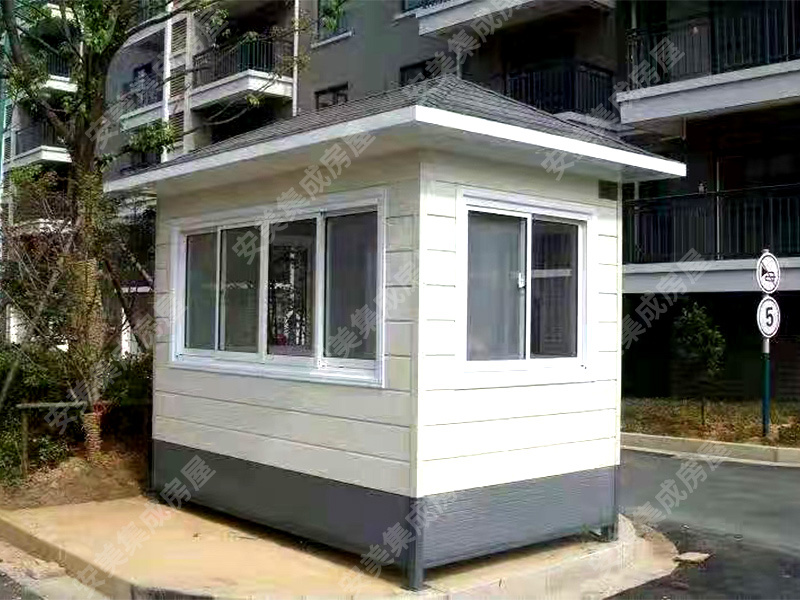

Outdoor Sentry Box
The sentry box is the box for sentry work. With the accelerated development of modernization, sentry boxes are increasingly widely used, with a wide range of applications. Some enterprises also have outstanding performance in production and manufacturing.
Production instructions:
1. The main frame adopts 80 * 80 * 3.0mm steel frame structure, and 40 * 60 * 2.0 square tube support.
2. The four panels are made of double layer polyurethane insulation material, two layers of 12mm thick wood, the outer panel is made of 2mm thick composite aluminum plate, and the inner panel is fixed with 2mm thick aluminum plate.
3. The bottom is fixed with a 30 * 50+30 * 30 steel frame structure, with a 12mm thick wood interlayer in the middle. The wood interlayer is made of polyurethane thermal insulation material, and the ground is made of high-grade anti-skid aluminum plate.
4. The top is fixed with a 30 * 50 steel frame structure, with a middle layer of thermal insulation board, and the upper layer is fixed with a 30 * 30+30 * 50 steel frame structure to enhance the fixation. The top layer is fixed with 1, 2mm color steel plates, and sealed with imported waterproof materials to completely eliminate water leakage and seepage. The inner roof is a luxury decorative plate ceiling.
5. Movable doors and windows: high-grade stainless steel sliding doors and stainless steel moving windows.
